4CH 1080p HD-TVI Security MAGIC Lite Series DVR System – Auto Detects Analog/960H/HD-TVI
Magic DVR detects Analog • 960H • HD-TVI camera automatically. REAL-TIME Live • 720p@120FPS Pentaplex Recording • 1080p@30FPS Playback • H.264 • Programmable Spot Out • iPhone Android App Available (MAGIC VIEWER). Crystal Clear 1080p Live Video • Dual Streaming • Mac CMS application • POS Interface ready • RS-485 for PTZ control • Free DDNS Support
$ 499.00
Description
What is Magic Technology?
Magic Technology is designed to adopt various video signal types in a single Digital Video Recorder. In other words, any past generation analog CCTV cameras you own, as well as HD-TVI digital CCTV-cameras will work seamlessly with the Magic DVR. Magic technology bridges the gap between analog security and the next generation high definition digital security.

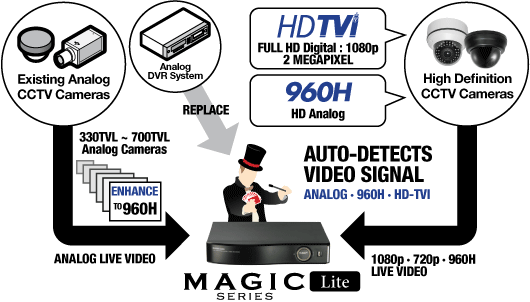

How Magic Lite DVR Works
Upgrade just can’t get any easier than this, just unplug all cameras from the old DVR and plug them back into the new Magic DVR, it will just work. Absolutely no training or knowledge is necessary. The best feature about the DVR is that both analog and HD-SDI cameras work in a single DVR. FULL HD security is not a luxury option any more, it is a must for today’s security.
FEATURES
- Full GUI with Alpha Blending
- Individual Setting of Resolution, Frame Rates & Picture Quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly Scheduler with Holiday by 10 min Setting
- Covert, Disable & Private Function of Cameras
- Motion Detection with 576 Area Settings
- Relay Alarm Output
- PTZ Control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi-User Authority up to 8 Users
- De-interlacer upon Live & Playback
- 22 Languages with Full Graphic
- Individual Network Port Setting
- Auto Deletion
- Import and Export the Configuration
- POS Interface
- Dual CODEC Engine for Independent Video Transmission
- Interactive Setup via Network
SPECIFICATIONS
| Video | |
| Camera Input | 4 BNC |
| Individual HD/Analog | All Hybrid |
| Available Source | TVI 720p25,30/1080p25,30/Composite/960H/Mixed |
| Output | 1 HDMI (Main Display) 1 VGA (Main Display) 1 Composite (Programmable SPOT) |
| Audio | |
| Audio Input | 4 RCA |
| Output | 1 RCA |
| Sensor In | 4 (NC, NO selectable) |
| Alarm out | 1 Relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (Pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080 |
| Screen Split | 1 / 4 |
| Recording | |
| CODEC | H.264 / JPEG for 3G, Dual CODEC |
| Resolution (Pixel) | 1080p (1080p25,30) 720p (720p25,30) 960H, 720H (Composite, 960H) |
| Picture Quality | 4 Steps (Super, High, Medium, Low) |
| Speed | NTSC : 120fps@720p / 50fps@1080p PAL : 100fps@720p / 50fps@1080p |
| Playback | |
| Display | 1 / 4 |
| Search Mode | Calendar, Event ,POS , Panorama, Thumbnail |
| Speed | NTSC : 30fps@1080p PAL : 25fps@1080p |
| Fast/Slow speed | Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause |
| Network | |
| Network Interface | Gigabit Ethernet |
| Speed | NTSC : 20fps@720p PAL : 20fps@720p |
| Protocol | TCP/IP, HTTP, DHCP |
| Application | Windows 7 / 8 (PC Client system & IE)/MAC |
| Web Browser | Internet Explorer, Safari, FireFox, Chrome |
| Smart phone App | MAGIC VIEWER : Android, iPhone for Live & Search |
| Backup | |
| Interface | USB 2.0 × 2 |
| Backup device | External HDD, CD & DVD-RW, Network, Thumb Drive |
| The Number of HDD | 2 SATA |
| Others | |
| Power Consumption | 60W |
| Operating Temperature | 5 ~ 40°C(41 ~ 104°F) |
| Relative Humidity | Maximum 80% non-condensing |
| Dimension | 13.39(W) × 9.84(D) × 2.36(H)inches / 340(W) × 250(D) × 60(H)mm |
