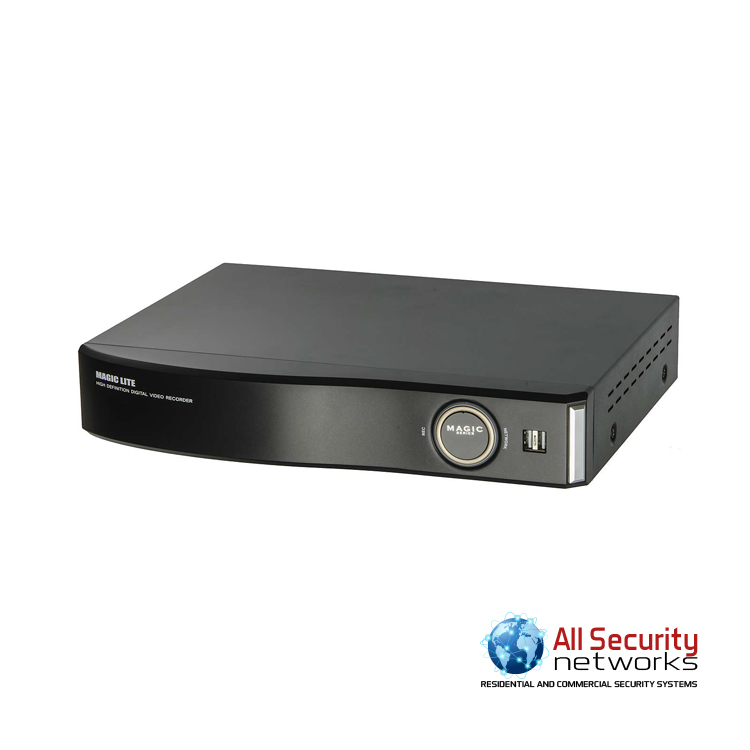

8CH 1080p HD-TVI Security MAGIC Lite Series DVR System – Auto Detects Analog/960H/HD-TVI

Magic DVR detects Analog • 960H • HD-TVI camera automatically. REAL-TIME Live • 720p@240FPS Pentaplex Recording • 1080p@60FPS Playback • H.264 • Programmable Spot Out • iPhone Android App Available (MAGIC VIEWER). Crystal Clear 1080p Live Video • Dual Streaming • Mac CMS application • POS Interface ready • RS-485 for PTZ control • Free DDNS Support

SKU: VST-MAGIC-TL08 Categories: , Tag:
Brand:

$ 699.00

Quantity
Compare

Description

What is Magic Technology?

Magic Technology is designed to adopt various video signal types in a single Digital Video Recorder. In other words, any past generation analog CCTV cameras you own, as well as HD-TVI digital CCTV-cameras will work seamlessly with the Magic DVR. Magic technology bridges the gap between analog security and the next generation high definition digital security.

How Magic Lite DVR Works

Upgrade just can’t get any easier than this, just unplug all cameras from the old DVR and plug them back into the new Magic DVR, it will just work. Absolutely no training or knowledge is necessary. The best feature about the DVR is that both analog and HD-SDI cameras work in a single DVR. FULL HD security is not a luxury option any more, it is a must for today’s security.

FEATURES

  • Full GUI with Alpha Blending
  • Individual Setting of Resolution, Frame Rates & Picture Quality
  • Instant Replay
  • Digital Zoom (Live & Playback)
  • Mouse Control
  • Weekly Scheduler with Holiday by 10 min Setting
  • Covert, Disable & Private Function of Cameras
  • Motion Detection with 576 Area Settings
  • Relay Alarm Output
  • PTZ Control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi-User Authority up to 8 Users
  • De-interlacer upon Live & Playback
  • 22 Languages with Full Graphic
  • Individual Network Port Setting
  • Auto Deletion
  • Import and Export the Configuration
  • POS Interface
  • Dual CODEC Engine for Independent Video Transmission
  • Interactive Setup via Network



SPECIFICATIONS

Video
Camera Input 8 BNC
Individual HD/Analog All Hybrid
Available Source TVI 720p25,30/1080p25,30/Composite/960H/Mixed
Output 1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio
Audio Input 4 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable)
Alarm out 1 Relay
Operating System Embedded Linux OS
Display
Speed Real Time
Resolution (Pixel) 1280 × 1024, 1280 × 720, 1920 × 1080
Screen Split 1 / 4 / 6 / 8 / 9
Recording
CODEC H.264 / JPEG for 3G, Dual CODEC
Resolution (Pixel) 1080p (1080p25,30)
720p (720p25,30)
960H, 720H (Composite, 960H)
Picture Quality 4 Steps (Super, High, Medium, Low)
Speed NTSC : 240fps@720p / 120fps@1080p
PAL : 200fps@720p / 100fps@1080p
Playback
Display 1 / 4 / 6 / 8 / 9
Search Mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC : 60fps@1080p
PAL : 50fps@1080p
Fast/Slow speed Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network
Network Interface Gigabit Ethernet
Speed NTSC : 40fps@720p
PAL : 40fps@720p
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 (PC Client system & IE)/MAC
Web Browser Internet Explorer, Safari, FireFox, Chrome
Smart phone App MAGIC VIEWER : Android, iPhone for Live & Search
Backup
Interface USB 2.0 × 2
Backup device External HDD, CD & DVD-RW, Network, Thumb Drive
The Number of HDD 2 SATA
Others
Power Consumption 60W
Operating Temperature 5 ~ 40°C(41 ~ 104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 13.39(W) × 9.84(D) × 2.36(H)inches / 340(W) × 250(D) × 60(H)mm
