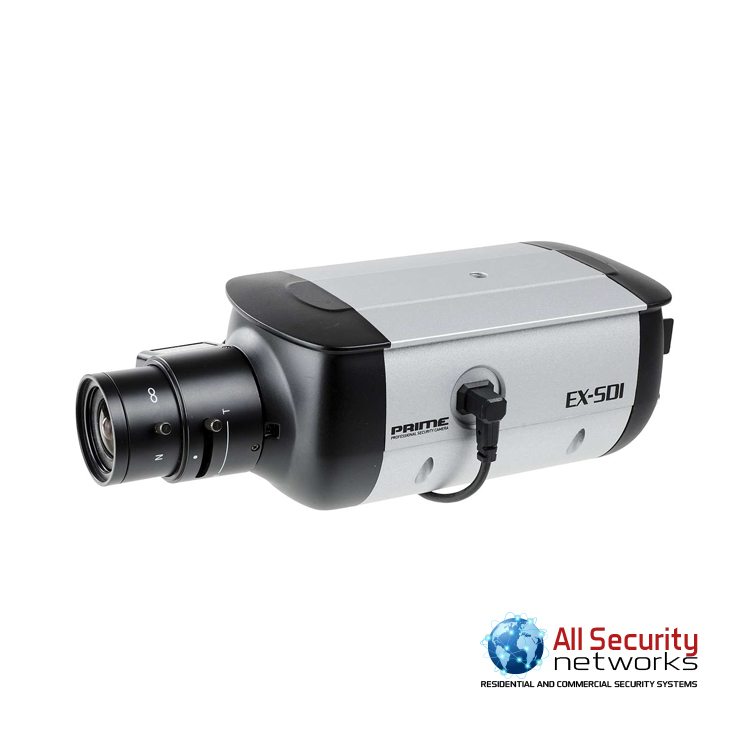

EX-SDI 1080p(2MP) Brick Camera / Dual Power

EX-SDI1080pDC 12V • AC 24VIndoor1/2.9″ Sony CMOS • True Day & Night(ICR) • DNR (Digital Noise Reduction) • AWB (Auto White Balance) • SENS-UP • EX-SDI • HD-SDI selectable • Balun compatible • Lens not included • Made in Korea

SKU: UPB-204 Categories: , Tag:
Brand:

$ 145.00

Quantity
Compare

Description

What is EX-SDI?

The Secrets

EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.

Ready for 4K

EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in realtime FPS over coaxial cable.

Backward Compatibility

EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors’ technologies

Video Balun compatible

UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)

SPECIFICATIONS

Sensor 1/2.9 inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels 2000(H) × 1241(V) = 2,482,000
Effective Pixels 1944(H) × 1092(V) = 2,122,648
Scanning System PROGRESSIVE
S/N (Y signal) More than 52 dB (AGC Off)
Video Output SMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option)
Min.Illumination 1 Lux at F1.2 / 0.1 Lux (B/W)
White Balance AUTO / AUTO EXT / PRESET / MANUAL
shutter AUTO / MANUAL (1/30sec ~ 1/60,000sec)
Brightness ADJUSTABLE (0 ~ 20 STEP)
SENS_UP OFF / × 2 / × 4 / × 8 / × 16 / × 32
DNR OFF / LOW / MIDDLE / HIGH
BACKLIGHT OFF / WDR / BLC / HLC
ACE OFF / LOW / MIDDLE / HIGH
Day & Night AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN,
Privacy OFF / ON
Motion OFF / SET
D.ZOOM x1.0 ~ × 16.0
FLIP OFF / ON
FREEZE OFF / ON
Language ENG, CHN, CHN(S), JPN, KOR
Sharpness ADJUSTABLE (0 ~ 10 STEP)
DEFOG OFF / SET

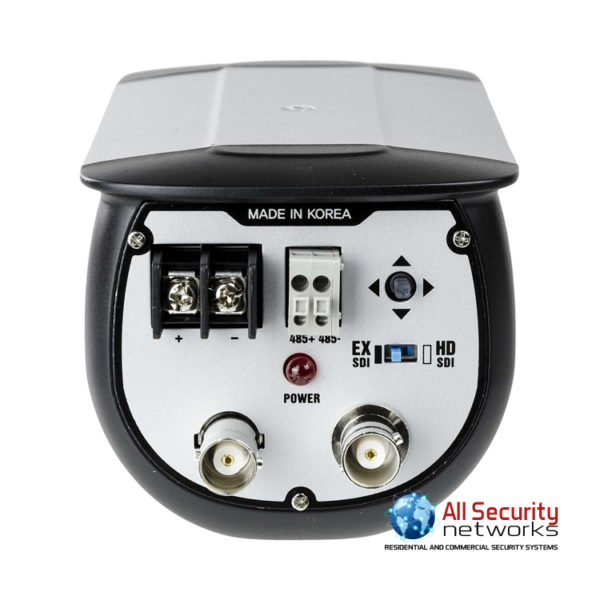

COMM RS-485 (PELCO-D)
SMART IR (IR product SPEC.) ADJUSTABLE (0 ~ 20 STEP)
Operating Temperature / Humidity 14°F ~ 122°F(−10°C ~ 50°C) / 30% ~ 80% RH
Storage Temperature / Humidity −4°F ~ 140°F(−20°C ~ 60°C) / 20% ~ 90% RH
Power DC12V [ AC24V / DC12V DualPower (option) ]
signal  Transmission The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))
