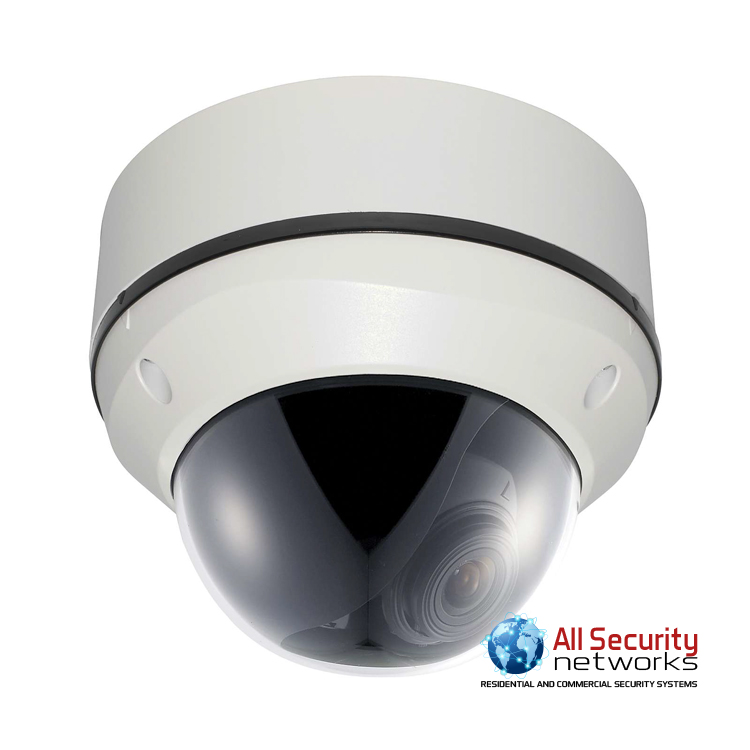

Eyemax | EX-SDI 1080P (2MP) STORM® Outdoor Vandal-resistant IP68 Dome Camera /w Auto-Iris VF Lens, Dual Power

1/2.9 inch SONY CMOS • Extended Serial Digital Interface • 1 Lux at F1.2 • 0.1 Lux (B/W) • Upgraded Waterproof Housing (IP 68 rating) • DNR (Digital Noise Reduction) Digital WDR (Wide Dynamic Range) • Day & Night (ICR Option) • Easy Installation ICR V/F lens • DC Auto IRIS V/F Lens • DC Auto IRIS & TDN V/F Lens • 2.8~12mm VF Lens

SKU: UVL-204V-W Categories: , Brand:
Brand:

$ 199.00

Quantity
Compare
Add to Wishlist

Description

SPECIFICATIONS

Resolution 1080P, 720P
Sensor 1/2.9 inch SONY CMOS
Total Pixels 1952(H) × 1112(V) = 2,178,432
Effective Pixels 1944(H) × 1104(V) = 2,146,176
Scanning System PROGRESSIVE
S/N (Y signal) More than 52 dB (AGC Off)
Video Output SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option)
Min.Illumination 1 Lux at F1.2 / 0.1 Lux (B/W)
White Balance AUTO / AUTO EXT / PRESET / MANUAL
Electronic shutter speed AUTO / MANUAL (1/30sec ~ 1/60,000sec)
SENS_UP OFF / × 2 ~ × 32
DNR / ACE OFF / LOW / MIDDLE / HIGH
BACKLIGHT OFF / WDR / BLC / HLC
Day & Night AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN
PRIVACY / FLIP / FREEZE OFF / ON
MOTION / DEFOG OFF / SET
D.ZOOM x1.0 ~ × 16.0
Language ENG, CHN, CHN(S), JPN, KOR
Sharpness / Brightness ADJUSTABLE (Sharpness : 0 ~ 10 STEP / Brightness : 0 ~ 20 STEP )
COMM. RS-485(PELCO-D)
Temperature/Humidity Operating (14℉ ~ 120℉(-10℃ ~ 50℃) / 30% ~ 80% RH) / Storage (-4℉ ~ 140℉(-20℃ ~ 60℃) / 20% ~ 90% RH)
Power AC24V / DC12V Dual Power
signal Transmission The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : EX-SDI (500M))
