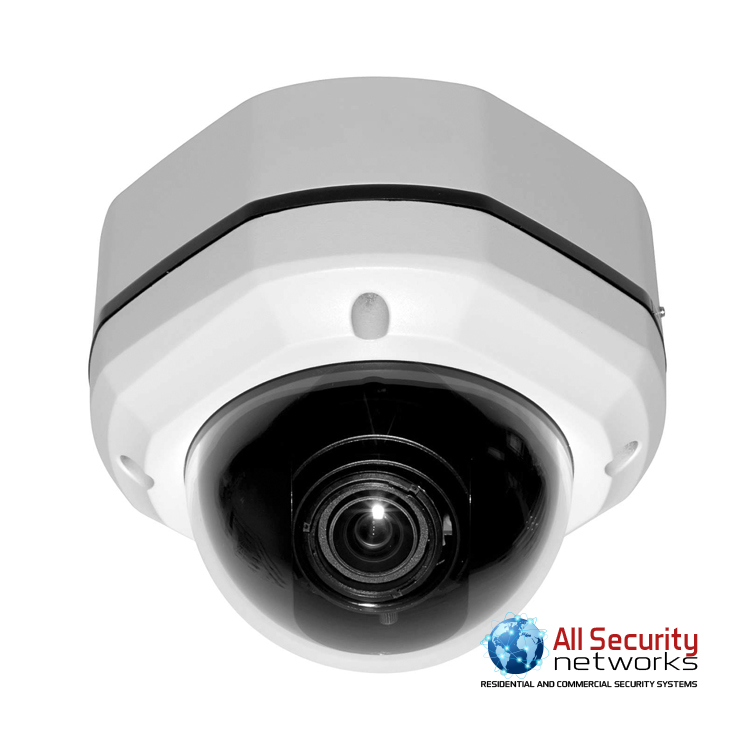

HD-TVI Outdoor Dome Camera(IP68) / 1080P(2MP) / 3.6mm MP / DC 12V

1/2.9 inch SONY CMOS (IMX-222) • Resolution (1080P • 720P • 720P CROP) • TVI (Transport Video Interface) • 1 Lux at F1.2 • 0.1 Lux (B/W) • Upgraded Waterproof Housing (IP68rating) • DNR (Digital Noise Reduction) • Day & Night (ICR Option) • Option (RS-485) • Easy Installation • 3Axis • fixed Lens 3.6mm

SKU: THM-202-W Categories: ,
Brand:

$ 159.00

Quantity
Compare

Description

SPECIFICATIONS

RESOLUTION 1080P, 720P, 720P CROP
SENSOR 1/2.9 inch SONY CMOS (IMX-222)
TOTAL PIXELS 2000(H) × 1241(V) = 2,482,000
EFFECTIVE PIXELS 1944(H) × 1092(V) = 2,122,648
SCANNING SYSTEM PROGRESSIVE
S/N (Y SIGNAL) More than 52 dB (AGC Off)
VIDEO OUTPUT TVI / (CVBS: 1.0Vp-p (75ohm) : Option)
MIN.ILLUMINATION 1 Lux at F1.2 / 0.1 Lux (B/W)
WHITE BALANCE AUTO / AUTO EXT / PRESET / MANUAL
SHUTTER AUTO / MANUAL (1/30sec ~ 1/60,000sec)
BRIGHTNESS ADJUSTABLE (0 ~ 20 STEP)
SENS_UP OFF / × 2 / × 3 / × 4 / × 5 / × 6 / × 7 / × 8
DNR OFF / LOW / MIDDLE / HIGH
BACKLIGHT OFF / WDR / BLC / HLM
ACE OFF / LOW / MIDDLE / HIGH
DAY & NIGHT AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN, MDIR (SEARCH Option)
PRIVACY OFF / ON (16 Zone)
MOTION OFF / SET
D.ZOOM 0 ~ 127
FLIP OFF / ON
FREEZE OFF / ON
LANGUAGE ENG, CHN, CHN(S), JPN, KOR
SHARPNESS ADJUSTABLE (0 ~ 10 STEP)
DEFOG OFF / SET
COMM RS-485 (PELCO-D)
SMART IR (IR PRODUCT SPEC.) ADJUSTABLE (0 ~ 20 STEP)
OPERATING TEMPERATURE / HUMIDITY 14°F ~ 122°F(−10°C ~ 50°C) / 30% ~ 80% RH
STORAGE TEMPERATURE / HUMIDITY −4°F ~ 140°F(−20°C ~ 60°C)
/ 20% ~ 90% RH
POWER DC12V [ AC24V / DC12V DualPower (option) ]
SIGNAL TRANSMISSION The distant difference is occurred according to cable option and other circumstances. (coaxial cable 300M)
