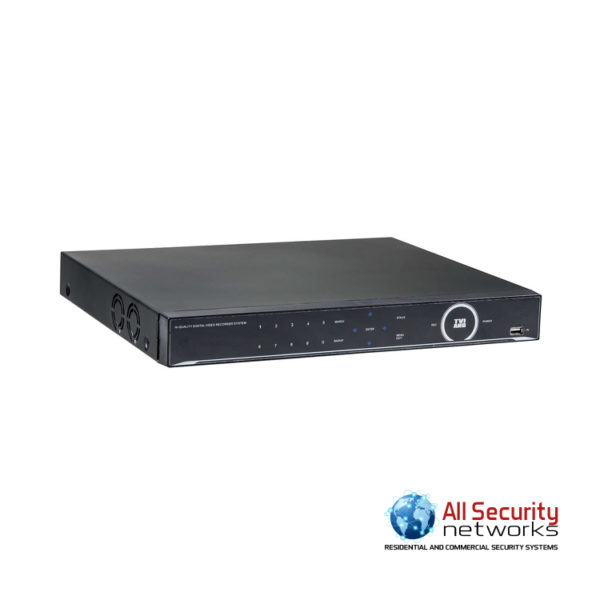

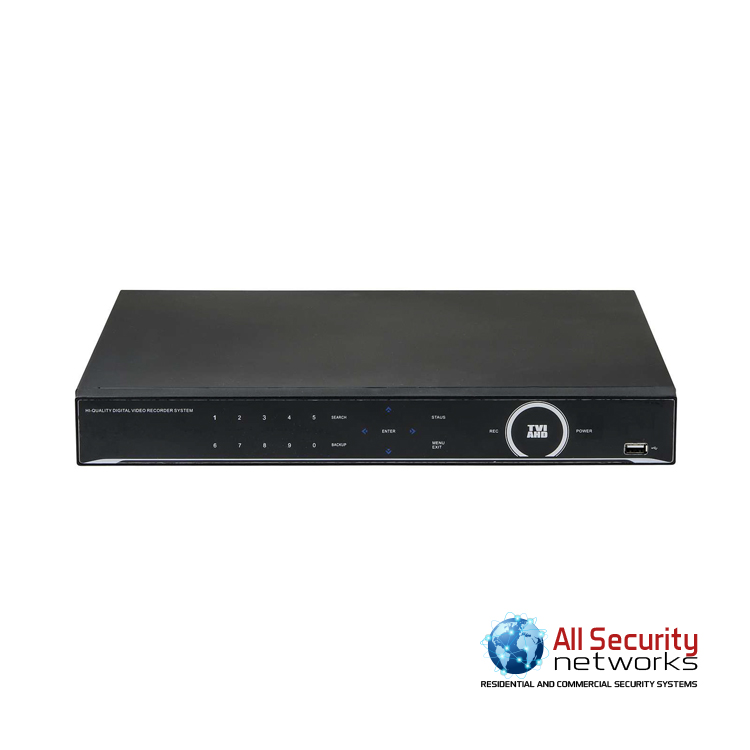

16CH 1080p HD-TVI Security PVT Series DVR System – Auto Detects HD-TVI/AHD 2.0/960H/Analog
PVT Series DVR accepts Analog / 960H / HD-TVI / AHD 2.0 camera
REAL-TIME Live • 240fps@1080p Recording • H.264 • iPhone® Android® App Available (Mr.Patrol) • Dual Streaming • Mac CMS application • POS Interface ready • RS-485 for PTZ control • Free DDNS Support
$ 799.00
Description
FEATURES
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 576 area setting
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 Users
- Deinterlacer upon live and playback
- 22 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Interactive setup via network
- POS Interface
- Dual CODEC engine for independent video transmission
SPECIFICATIONS
| TVST PVT-16 | |
| Video | |
| Camera Input | 16 BNC |
| Individual HD/Analog Selectable | All Hybrid |
| Output | 1 HDMI (Main Display) / 1 VGA (Main Display) |
| Audio | |
| Audio Input | 16 RCA |
| Audio Ouput | 1 RCA |
| Sensor In | 4 (NC, NO Selectable) |
| Alarm Out | 1 Relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real-Time |
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 |
| Split Screen | 1,4,6,8,9,13,16 |
| Main Recording | |
| CODEC | H.264 |
| Resolution (Pixel) | 1080p (1080p25,30)720p (720p25,30)
960H, D1 (Composite, 960H) |
| Picture Quality | 4 steps (Super, High, Medium, Low) |
| Speed | NTSC Area: 480fps@720p/240fps@1080pPAL Area: 400fps@720p/200fps@1080p |
| Dual Recording | |
| CODEC | H.264 |
| Resolution (Pixel) | 480×256 |
| Playback | |
| Display | 1,4,6,8,9,13,16 |
| Search Mode | Calendar, Event, POS, Panorama, Thumbnail |
| Speed | NTSC Area: 60fps@1080pPAL Area: 50fps@1080p |
| Fast/Slow Speed | Normal, REW & FF [Recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause |
| Network | |
| Network Interface | Gigabit Ethernet |
| Low Resolution (Pixel) | 480×256 (1080p25,30)480×256 (720p25,30)
CIF (Composite, 960H) |
| Speed | NTSC Area: 80fps@720pPAL Area: 80fps@720p |
| Protocol | TCP/IP, HTTP, DHCP |
| Application | Windows 7 / 8 (PC Client system & IE)/ MAC |
| Web Browser | Internet Explorer, Safari, Chrome, Firefox |
| Smart Phone App | Android, iPhone for Live & Search |
| Backup | |
| Interface | USB 2.0 × 2 |
| Backup Device | External HDD, CD & DVD-RW, Network, Thumb Drive |
| The Number of HDD | 2 × SATA |
| Others | |
| Operating Temperature | 5~40°C (41~104F) |
| Relative Humidity | Maximum 80% non-condensing |
